200M Hydraulic DTH & Mud Drilling Machine

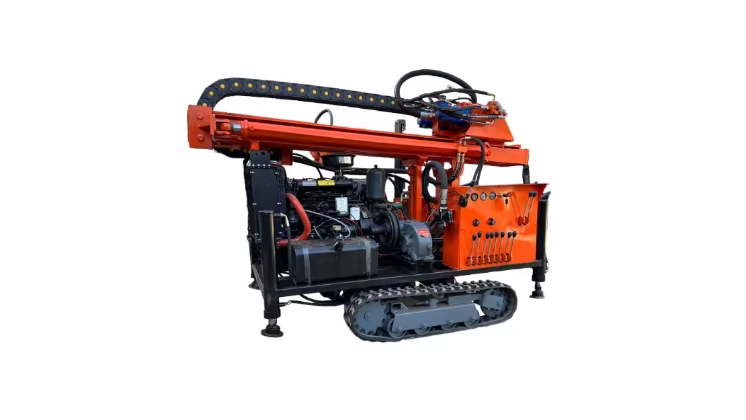

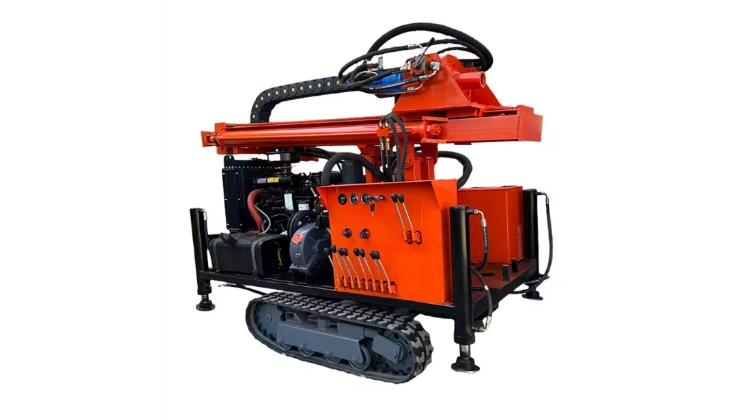

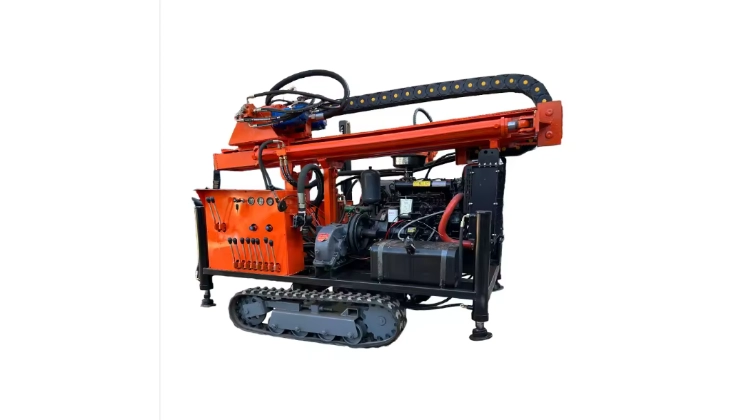

The FY-260 water well drilling rig is a hydraulic drilling machine designed for water well drilling, borehole drilling, and geological exploration. The machine supports both DTH hammer drilling and mud drilling, making it suitable for various soil and rock formations.

With a drilling depth up to 200 meters and drilling diameter up to 300mm, the FY-260 is ideal for water wells, irrigation wells, and construction drilling projects.

FY-260

supports Down-the-hole (DTH) hammer drilling ,Mud rotary drilling
Drilling diameter range Φ130–Φ300mm, suitable for various well sizes.
Maximum drilling depth up to 200 meters, suitable for deep water wells and borehole projects.
The rig provides 14T lifting force, making drill pipe handling easier and improving work efficiency.
Equipped with a 45KW diesel engine, providing stable power and reliable performance.

High Efficiency
Durable
Precise
Flexible

Get a quote now

Details

Parameter Table

Application

Why Choose FY-260 Drilling Rig

▪️ Drilling depth up to 200 m for deep water wells and engineering projects

▪️ Dual drilling modes: DTH hammer for hard rock and mud rotary for softer formations

▪️ Strong lifting capacity of 14 tons for heavy-duty operations

▪️ Powerful 45 kW diesel engine delivering consistent torque and efficiency

▪️ Hydraulic feeding system for smooth, precise, and controlled drilling

▪️ Adaptable for both soil and rock drilling applications

▪️ Stable performance with easy operation for on-site efficiency

▪️ Ideal choice for water well drilling contractors and civil engineering projects

Suitable Formations

The FY-260 drilling rig is engineered for versatile drilling across a wide range of geological conditions, including:

▪️ Soil layers

▪️ Sand layers

▪️ Gravel layers

▪️ Pebble layers

▪️ Rock layers

▪️ Hard rock formations (when equipped with a DTH hammer)

This makes the rig suitable for both soft and hard ground applications, providing reliable performance in water well, foundation, and construction drilling projects.

Technical Specifications

Project	Parameter
Model	FY-260
Total Weight	2000 kg
Machine Size	2.3 × 1.2 × 2 m
Drilling Diameter	Φ130 – Φ300 mm
Drilling Depth	200 m
Drill Pipe Diameter	Φ76 / Φ89 mm
Working Pressure	1.5 – 2 MPa
Engine Power	45 kW
Lift Force	14 T
Drilling Mode	DTH Hammer / Mud Drilling
Feeding System	Double Hydraulic Motor Rotary Propulsion
