Water Well Drilling Rig
Water Well Drilling Rigs are specialized machines designed to drill and install water wells efficiently and reliably. Equipped for various soil, sand, clay, and soft rock formations, these rigs are ideal for residential, agricultural, and industrial water supply projects. Their robust structure and precision drilling systems ensure stable performance even in challenging ground conditions.
Product Categories

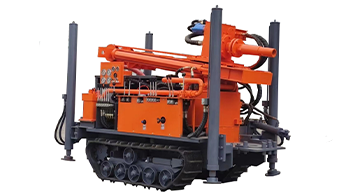

Crawler Pneumatic Water Well Drilling Rig

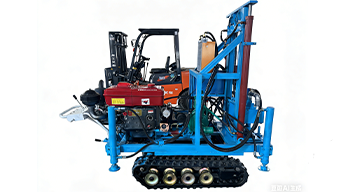

Crawler Water Well Drilling Rig

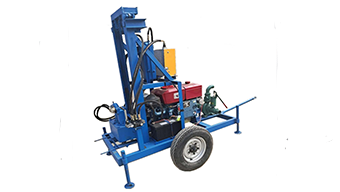

Portable Water Well Drilling Rig

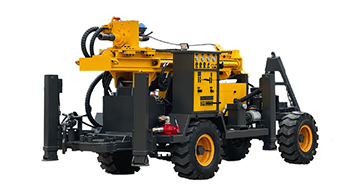

Trailer-Mounted Pneumatic Water Well Drilling Rig
Trailer-Mounted Water Well Drilling Rig

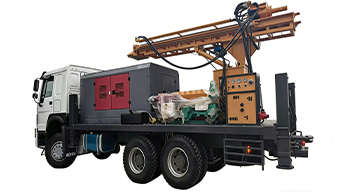

Truck-Mounted Water Well Drilling Rig
QY-600
-
Deep drilling capability up to 600 m for large-scale water well projects -
Wide drilling diameter range (140–400 mm) for flexible application needs
-
High torque output (8,000–12,000 N·m) for efficient hard rock penetration
-
Multi-functional drilling methods: mud rotary, DTH, and impact rotary
-
Powerful hydraulic system with stable lifting and feeding performance
-
Reliable 129 kW Weichai diesel engine for continuous operation
-
Strong terrain adaptability with crawler chassis and 25° climbing ability
-
Fast penetration rate (12–40 m/h) to improve project efficiency
VIEW MORE
QY-350
-
Crawler chassis with off-road capability
-
Can be mounted on trucks for increased transportation efficiency
-
Two-speed rotation and propulsion for different soil and rock layers
-
Combined positioner ensures precise positioning and centering
-
Hoist structure simplifies lifting of drill pipes and impactors
-
Reduces labor intensity and improves drilling efficiency
-
Full hydraulic system for smooth operation
-
High engine power ensures stable performance in hard strata
-
Suitable for water well, hot spring well, and small construction drilling
VIEW MORE
QY-160
-
Compact design with only 1 m² footprint and 2 m height, suitable for space-limited job sites
-
Quick installation within 10 minutes, improving on-site efficiency
-
Applicable for both indoor and outdoor drilling environments
-
Efficient core drilling with self-developed technology for smooth operation and easy dismantling
-
Optimized for alloy and diamond core drilling applications
-
Fully mechanized drill pipe handling for lifting, loading, and unloading
-
Reduces labor intensity while improving operational efficiency
-
Easy to operate for survey and construction teams
VIEW MORE
FY-350
-
Robust Engine : 78KW rated power drives maximum drilling diameters up to 325mm and depths up to 300m.
-
Heavy Lifting: 14T lift capacity and 5T pressure capability ensure stable and efficient operations even in tough conditions.
-
Fast & Efficient: Maximum feed stroke of 3.6m and rotational speeds of 70–200 rpm accelerate your project timelines.
-
Flexible Drill Pipe Options: Recommended diameters of Φ76mm / Φ89mm and shipping dimensions 3.3×1.6×2.5m allow for versatile setup and transport.
-
Maximum Torque: 5000–6500 N·m turning torque ensures precise drilling and smooth operation on any site.
-
Lightweight & Compact: Total weight of 2.6T makes it easy to mobilize and operate in constrained spaces.
VIEW MORE
FY-260
-
supports Down-the-hole (DTH) hammer drilling ,Mud rotary drilling
-
Drilling diameter range Φ130–Φ300mm, suitable for various well sizes.
-
Maximum drilling depth up to 200 meters, suitable for deep water wells and borehole projects.
-
The rig provides 14T lifting force, making drill pipe handling easier and improving work efficiency.
-
Equipped with a 45KW diesel engine, providing stable power and reliable performance.
VIEW MORE
FSC-100
-
Versatile Power Options: Gasoline engine, 220V single-phase, or 380V three-phase power
-
Compact & Portable: Footprint <1 m², height controlled at ~2.6 m for easy outdoor and indoor use
-
Multi-Purpose Operation: Supports auger drilling, core sampling, and reverse water drilling
-
Efficient & Cost-Effective: Can drill 10–20 m per hour with low fuel consumption
VIEW MORE
SJ-300
-
Electric-Powered: Operates on 220V/380V with forward and reverse rotation.
-
Versatile Drilling: Suitable for clay and sandy soil layers.
-
Customizable Drill Rods: 1.5" and 1.2" drill rods available in various lengths.
-
Multiple Drill Bits: Choose from multi-diameter alloy or diamond drill heads.
-
Portable Design: Lightweight at only 180kg for easy transport and setup.
VIEW MORE
SJ-150
-
Compact and lightweight design for easy transport and installation
-
Can be used indoors or outdoors, quick disassembly for mobility
-
Fast drilling speed with adaptable drill bits and pipes for various diameters
-
Suitable for PVC or plastic pipe installation in water wells
-
Multiple power options: Electric, Diesel, or Gasoline for flexible operation
-
Impact rotary drilling method for efficient drilling in soil, sand, and soft rock
VIEW MORE
SM-200
-
Drilling Depth up to 180m: Suitable for deep water wells and boreholes
-
Wheel Mounted Design : Easy transportation and fast job site movement
-
High Torque Power Head:l 3200–4600 N·m torque for rock drilling
-
Fast Drilling Speed: Penetration efficiency 10–35 m/h
-
DTH Hammer Drilling: Compatible with medium & high air pressure hammers
-
Powerful Diesel Engine: Equipped with Quanchai diesel engine
-
Strong Lifting Capacity : 12T rig lifting force
-
Wide Application Range: Soil, sand, gravel, and rock layers
VIEW MORE
FY-300T
-
Remote control operation: Manage lifting, feeding, rotation, and air system safely from a distance
-
4WD tractor-mounted mobility: Travel easily over mud, sand, mountains, and rural roads
-
Deep drilling capacity : Reach up to 220 m depth and 130–254 mm diameter for versatile water well and borehole projects
-
High-torque hydraulic power head: 4500–5500 N·m torque for efficient drilling in hard soil and rock formations
-
Fast and efficient rotation: Upgraded system increases rotation speed for quicker drilling
-
Water swivel and quick valve: Switch easily between mud drilling and air drilling
-
Strong lift force: 12 T lifting capacity ensures stable and reliable operation
VIEW MORE
FY-300S
-
High drilling efficiency with depths up to 300 m
-
Powerful 58KW engine delivering 3200–4500 N·m torque
-
Wide drilling diameter range: 140–254 mm
-
Rapid feed and walking speeds improve project timelines
-
Flexible drill pipe combinations for different soil and rock conditions
-
Stable operation under heavy loads with safe working pressure and air support
-
Adaptive design for slopes and difficult terrain
-
Robust and durable construction for long-term use
VIEW MORE
FY-260L
-
Versatile Power Options: Gasoline engine, 220V single-phase, or 380V three-phase power
-
Compact & Portable: Footprint <1 m², height controlled at ~2.6 m for easy outdoor and indoor use
-
Multi-Purpose Operation: Supports auger drilling, core sampling, and reverse water drilling
-
Efficient & Cost-Effective: Can drill 10–20 m per hour with low fuel consumption
VIEW MORE
SJ-400
-
Quick & Efficient Drilling; Small size with fast borehole formation
-
Portable & Easy to Move: Built-in wheels for convenient relocation after drilling
-
Versatile Power Options: Diesel engine as standard; optional three-phase electric motor or higher-power diesel engine available
-
Suitable for Various Soils: Soft soil, sand, minor rock, and gravel layers
VIEW MORE
SJ-400L
-
Crawler-mounted design for easy movement on muddy, sandy, and uneven terrain
-
Diesel engine powered for independent operation in remote areas
-
Hydraulic support legs ensure stable and safe drilling
-
Drilling depth up to 200 m for versatile applications
-
Wide drilling diameter range of 100–400 mm
-
Suitable for soil, sand, gravel, and small rock layers
VIEW MORE
Performance & Engineering Highlights
Built for demanding construction environments, our drilling rigs combine power, durability, and precision to deliver consistent results across diverse ground conditions—helping contractors complete projects faster with greater reliability.
High Stability
Reinforced frame and drill support system for smooth operation.Efficient Drilling
Optimized drill heads and rotation systems reduce drilling time.Versatile Applications
Works in soil, sand, clay, and soft rock formations.Precision Boreholes
Accurate drilling ensures straight and consistent well shafts.Easy Maintenance
Modular components allow fast replacement and inspection.Safe Operation
Advanced safety features protect operators during drilling.
Residential Water Supply
Agricultural Irrigation
Industrial Water Wells
Efficient & Reliable Water Well Drilling Rigs
Our Water Well Drilling Rigs are designed for fast, accurate, and reliable well installation. Reinforced frames and optimized drill heads ensure stable performance across various soil and rock formations.
Precision Boreholes & Stable Operation
These rigs provide accurate drilling for straight and consistent well shafts. Robust structure and advanced rotation systems reduce downtime and improve overall project efficiency.
Versatile & Configurable Rigs
Compatible with various drilling methods, our rigs handle soil, sand, clay, and soft rock efficiently. Modular design allows flexible tooling and quick adjustments to suit project requirements.
Safe, Reliable & Easy-to-Maintain
Safety, maintenance, and long-term reliability are core advantages. Easy-to-access components and professional after-sales support ensure smooth operation even in remote locations.
Our expertise are here to serve you
-
What is the main use of a Water Well Drilling Rig?
-
It is used to drill wells for residential, agricultural, and industrial water supply.
-
Can it handle different ground conditions?
-
Yes, it can drill in soil, sand, clay, and soft rock with proper configuration.
-
What is the maximum drilling depth?
-
The depth depends on the model; most rigs support shallow to medium-depth wells efficiently.
-
Is it easy to transport to remote locations?
-
Yes, many rigs are designed with mobility in mind for remote or rural projects.
-
How to maintain the rig?
-
Regular inspection, cleaning, and timely replacement of worn parts ensure reliable operation.
