Sounding & Water Well Drilling Rig

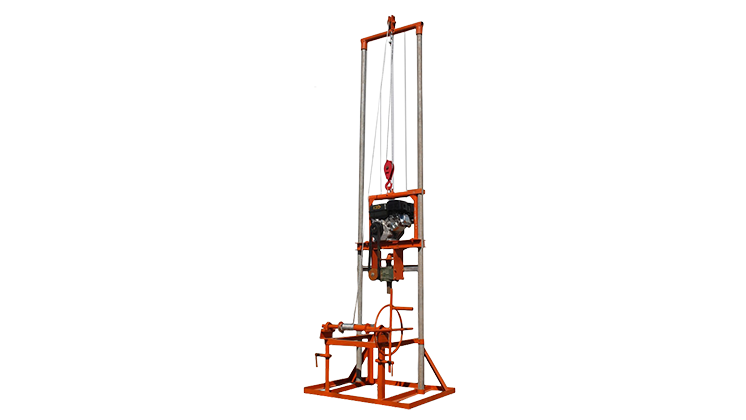

The FSC-100 gasoline water well drilling rig is designed for home water wells, irrigation, garden wells, and small-scale exploration projects. It is a versatile tool for drilling, coring, and small-scale geological survey. With multiple power options, it can adapt to gasoline, single-phase AC, or three-phase AC power, making it perfect for indoor or outdoor work.

FSC-100

Versatile Power Options: Gasoline engine, 220V single-phase, or 380V three-phase power
Compact & Portable: Footprint <1 m², height controlled at ~2.6 m for easy outdoor and indoor use
Multi-Purpose Operation: Supports auger drilling, core sampling, and reverse water drilling
Efficient & Cost-Effective: Can drill 10–20 m per hour with low fuel consumption

High Efficiency
Durable
Precise
Flexible

Get a quote now

Parameter Table

Application

Technical Specifications

Parameter	Specification
Model	FSC-100
Borehole Diameter	40 – 200 mm
Drilling Depth	30 – 100 m (depending on soil and pump)
Drill Rod Length	1.5 m
Drilling Efficiency	20 m/hour
Lifting Height	1.8 m
Lifting Capacity	600 kg
Total Weight	100 kg
Power Options	Gasoline, 220V single-phase, 380V three-phase
Applications	Water well drilling, core sampling, exploration, pipe clearing

Application Scenario

The FSC-100 Drilling Rig is widely used for:

🔹 Home water wells

🔹 Agricultural irrigation wells

🔹 Garden and landscape wells

🔹 Small-scale geological exploration

🔹 Lightweight and easy-to-move drilling projects

🔹 Simple operation and maintenance for on-site use

Explore more real-world drilling applications and project scenarios to find the right solution for your needs. ☛ View More
