KQD Down-the-Hole Drill

Down-hole drilling rig is an impact rotary drilling rig, which has a different internal structure from general rock drills. Its gas distribution and piston reciprocating machine structure are independent impactors. The front end is directly connected to the drill bit, and the rear end is connected to the drill rod. During rock drilling, the impactor penetrates into the hole and, through an air distribution device (valve), causes the piston (pituitary gland) inside the impactor to move back and forth to strike the drill tail, causing the drill bit to generate a rotational force on the rock at the bottom of the hole.

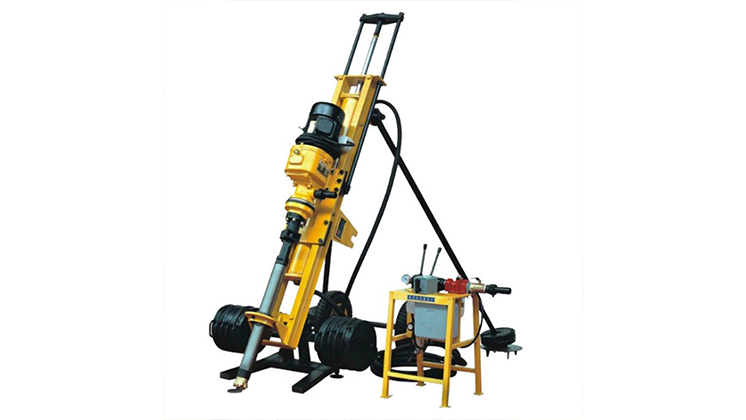

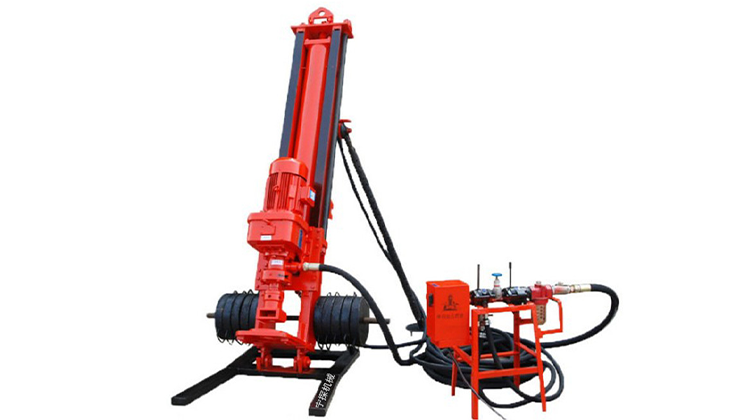

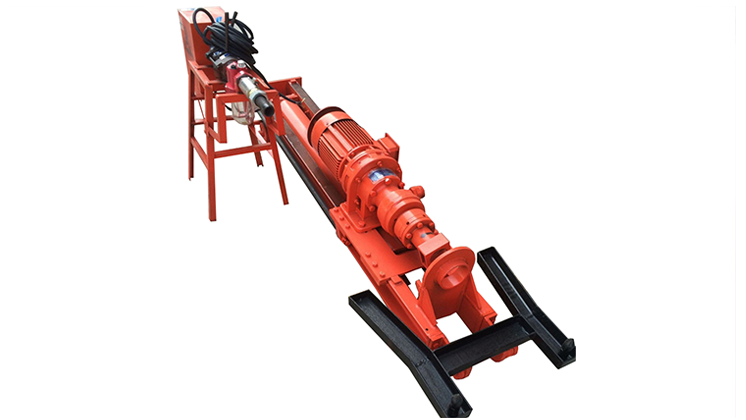

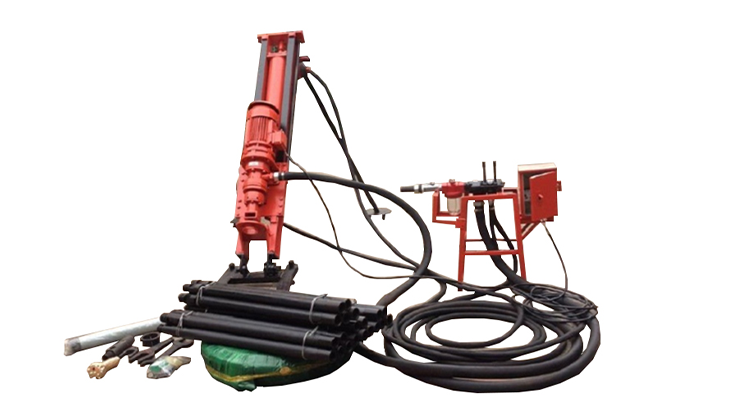

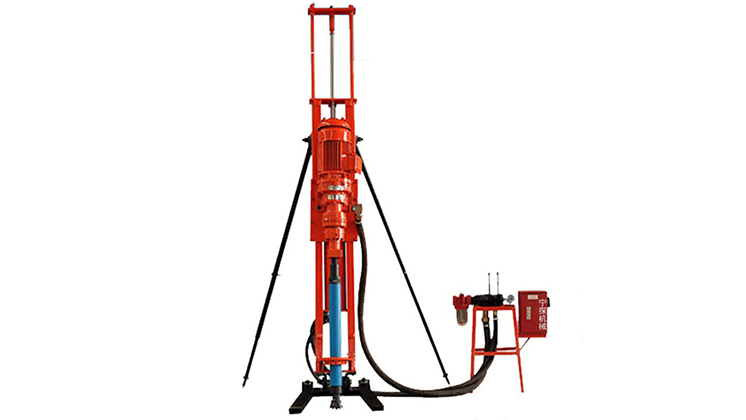

KQD -70

Small in size and light in weight, suitable for places where large and medium-sized drilling rigs cannot perform operations
Convenient and flexible
Powered by electricity, with low noise and strong power
Drilling speed is 3–8 times that of a typical rock drill
Capable of drilling rock with hardness up to level 20
Drilling depth per hour: 8–16 meters

High Efficiency
Durable
Precise
Flexible

Get a quote now

Parameter Table

Application

Technical Specifications

Model	KQD-70	KQD-100	KQD-120
Drilling diameter	Φ60-80mm	Φ83-100mm	Φ70-600
Hardness	≥20	≥20	≥20
Drill depth	≥15m	≥30m	≥120
Drill speed	110r/min	90r/min	90r/min
Air pressure	0.5-0.7Mpa	0.5-0.7Mpa	0.5-1.0Mpa
Gas consumption	≥3.5m3/min	≥6m3/min	≥15m3/min
Cylinder diameter	90mm	90mm	90mm
Advance travel	1070mm	1100mm	1200mm
Propulsive force	3600N	6000N	9600N
Power	3kw	4kw	5.5kw
Voltage	380V	380V	380V
Speed	1410r/min	1410r/min	1410r/min
Drill pipe diameter	Φ42mm	Φ50mm	Φ50mm
Drill pipe length	1025mm	1025mm	1025mm
Dimension	1740×260×420mm	1800650400mm	1800700450mm
Overall weight	180kg	220kg	450kg

All specifications are optimized for stable operation and maximum efficiency. Custom configurations are available upon request.

Application Scenario

The KQD-70 combines high torque and precision impact to efficiently penetrate hard rock. Its low-noise, energy-efficient design reduces operational costs, while modular components ensure quick replacement and minimal downtime. Feiyang Machinery provides technical guidance and customized configurations to optimize performance for each project.This product is suitable for use in:

🔹 Deep water well drilling for agriculture and industrial use

🔹 Hard rock drilling operations

🔹 Foundation and construction drilling projects

🔹 Geological exploration and survey drilling

🔹 Suitable for various construction, civil engineering, and drilling projects
