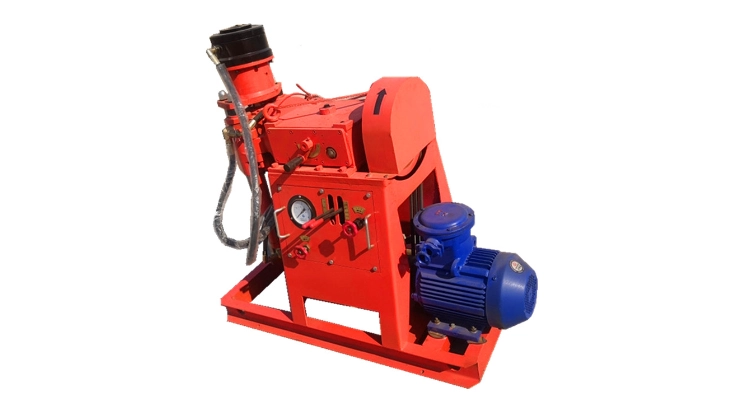

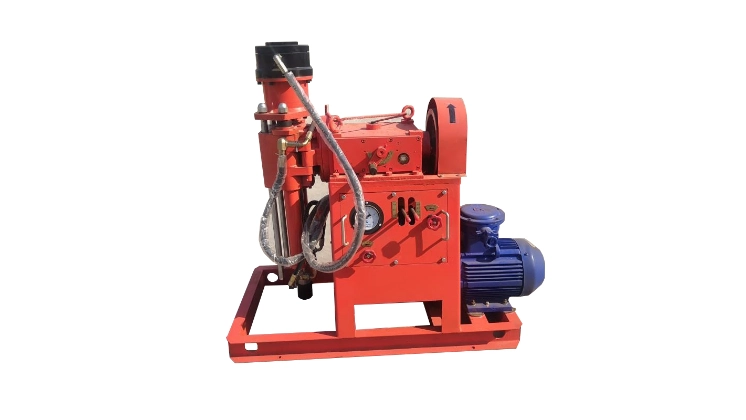

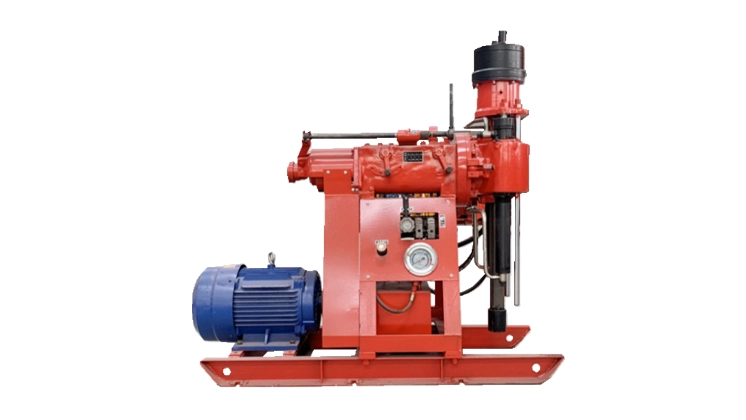

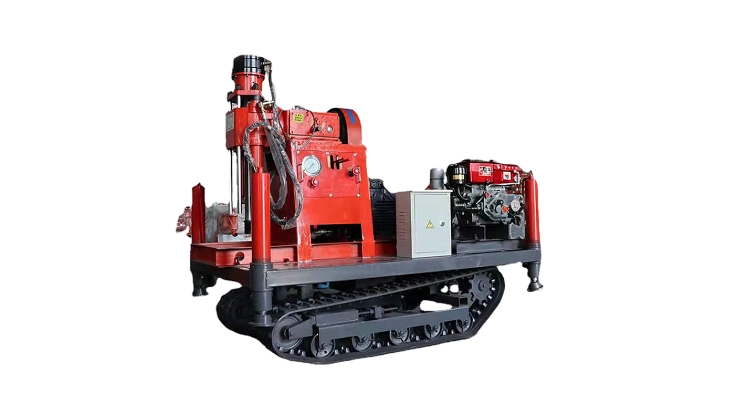

ZLJ-350 Grouting Reinforcement Drilling Rig
ZLJ-350 grouting reinforcement drilling rig is mainly used for grouting reinforcement drilling at different angles in underground mine, tunnel, subway and slope support. The drilling rig adopts mechanical transmission and hydraulic feeding, with the characteristics of small volume, light weight and convenient operation and maintenance.
ZLJ-350
- Drilling depth 150m
- Drill diameter Φ42mm
- Diameter of geological drill bit Φ50~Φ113mm
- Borehole diameter Φ56~Φ113mm
- Boring Angle 0~360°
- Vertical axis speed 112,192,340r/min
- Vertical axis torque 400,230,130N.m
- Give the process 400mm
- Hydraulic system rated pressure 8MPa
-
High Efficiency -
Durable -
Precise -
Flexible
Get a quote now
Application Scenario
Deep water well drilling for agriculture and industrial use |
Hard rock drilling operations |
Geological exploration and survey drilling |
Foundation and construction drilling projects |
Explore more real-world drilling applications and project scenarios to find the right solution for your needs. ☛ View More
