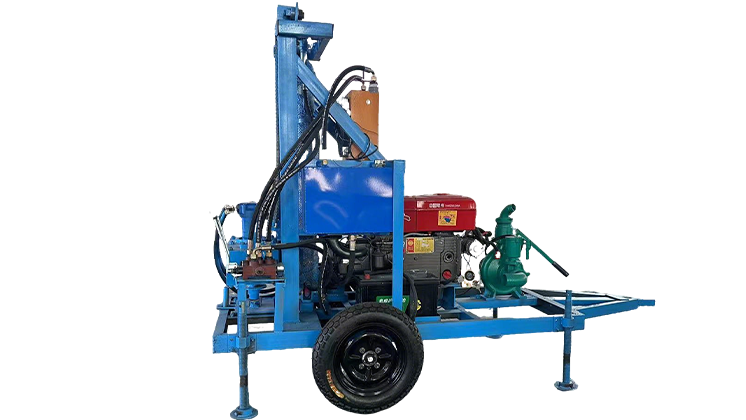

Diesel Hydraulic Water Well Drilling Rig

The SJ-400 diesel hydraulic water well drilling rig is a compact and fast civilian drilling solution, widely used for home water wells, irrigation wells, water supply for AC/solar systems, dewatering wells, and small construction piling. Its lightweight design and wheel base allow easy relocation by a single operator.

SJ-400

Quick & Efficient Drilling; Small size with fast borehole formation
Portable & Easy to Move: Built-in wheels for convenient relocation after drilling
Versatile Power Options: Diesel engine as standard; optional three-phase electric motor or higher-power diesel engine available
Suitable for Various Soils: Soft soil, sand, minor rock, and gravel layers

High Efficiency
Durable
Precise
Flexible

Get a quote now

Parameter Table

Application

Technical Specifications

Parameter	Specification
Model	SJ-400
Power	Diesel Engine 22 HP / 16.2 kW (115S)
Drilling Diameter	100–400 mm
Drilling Depth	80–150 m
Drill Rod Diameter	51 mm, 64 mm
Machine Weight	520 kg
Machine Dimensions (L×W×H)	180 × 80 × 180 cm
Suitable Soil	Soil, sand, minor rock, gravel layers

Application Scenario

The Diesel Hydraulic Water Well Drilling Rig is widely used for:

🔹 Residential water wells

🔹 Agricultural irrigation wells

🔹 Construction site water supply

🔹 Small-scale geological exploration

🔹 Borehole drilling in soil, sand, gravel, and minor rock layers

🔹 Rural and remote water supply projects

Explore more real-world drilling applications and project scenarios to find the right solution for your needs. ☛ View More
