Sliding Electric Water Well Drilling Rig

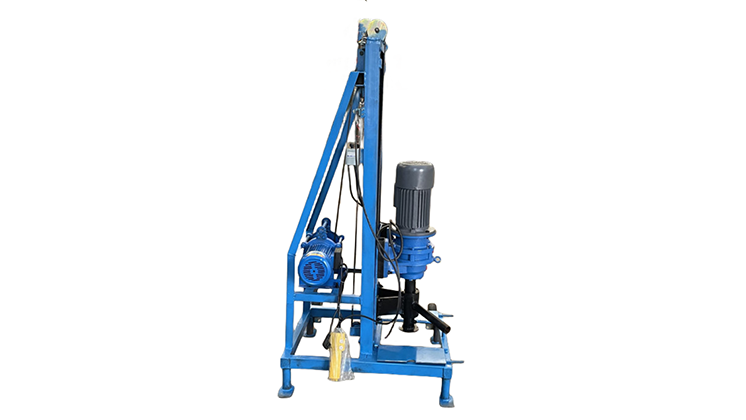

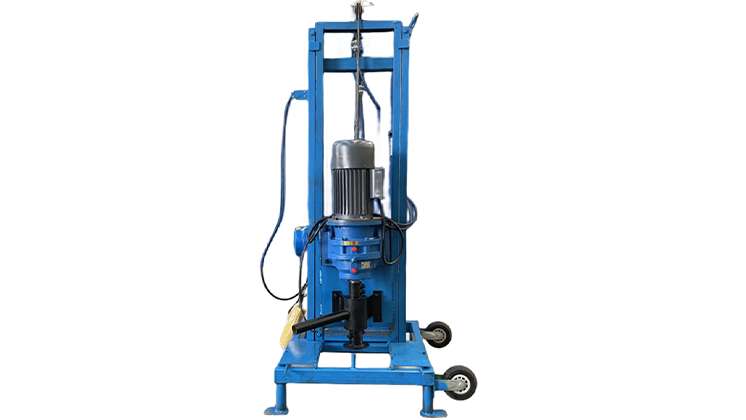

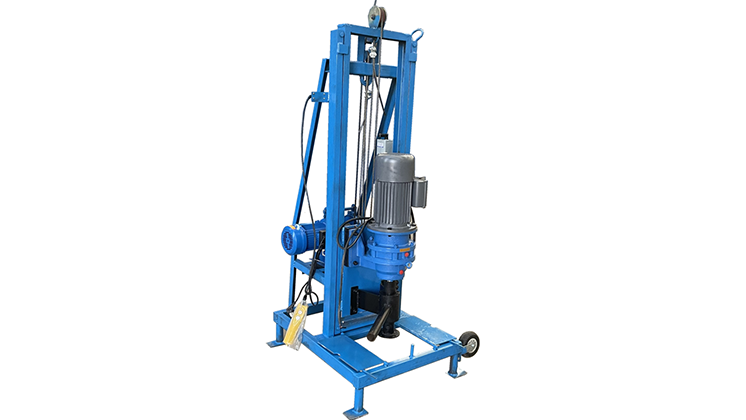

The SJ-300 small electric water well drilling rig is designed for both household and industrial applications. It is ideal for drinking water wells, irrigation for farmland, water supply for air conditioning and solar water systems, as well as construction site piling and small-scale drilling projects. Compact and easy to operate, the SJ-300 is perfect for sites with limited space or difficult access.

SJ-300

Electric-Powered: Operates on 220V/380V with forward and reverse rotation.
Versatile Drilling: Suitable for clay and sandy soil layers.
Customizable Drill Rods: 1.5" and 1.2" drill rods available in various lengths.
Multiple Drill Bits: Choose from multi-diameter alloy or diamond drill heads.
Portable Design: Lightweight at only 180kg for easy transport and setup.

High Efficiency
Durable
Precise
Flexible

Get a quote now

Parameter Table

Application

Technical Specifications

Parameter	Specification
Model	SJ-300
Power Supply	220V / 380V, two-phase, reversible
Main Motor Power	3 kW
Winch Motor Power	2 kW
Drilling Diameter	100–300 mm
Drill Rod Diameter	1.5" / 1.2", multiple lengths
Drill Bit Options	Multi-diameter alloy or diamond
Maximum Drilling Depth	Up to 130 m
Machine Weight	180 kg
Suitable Soil	Clay, sandy soil

Application Scenario

The SJ-150 Sliding Electric Water Well Drilling Rig is suitable for:

🔹 Household water wells

🔹 Farmland irrigation

🔹Water supply for AC and solar water heaters

🔹Small-scale construction piling

🔹 Industrial water wells

Explore more real-world drilling applications and project scenarios to find the right solution for your needs. ☛ View More
