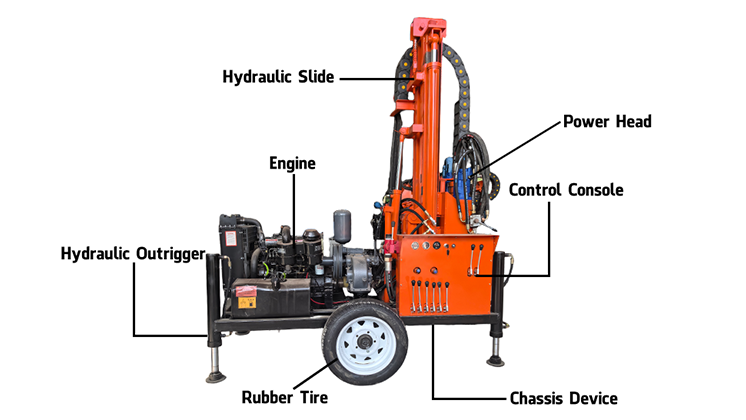

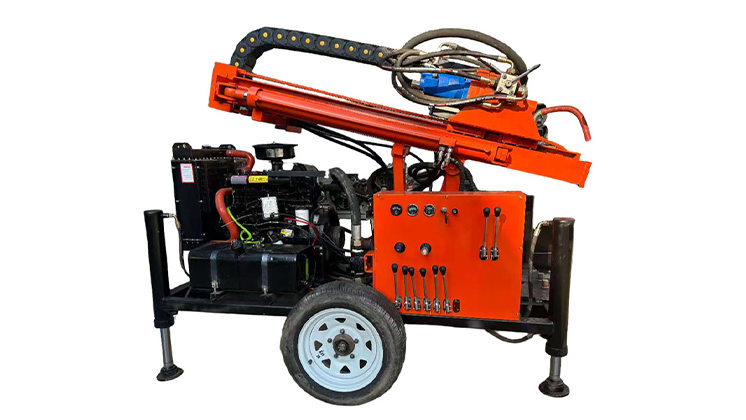

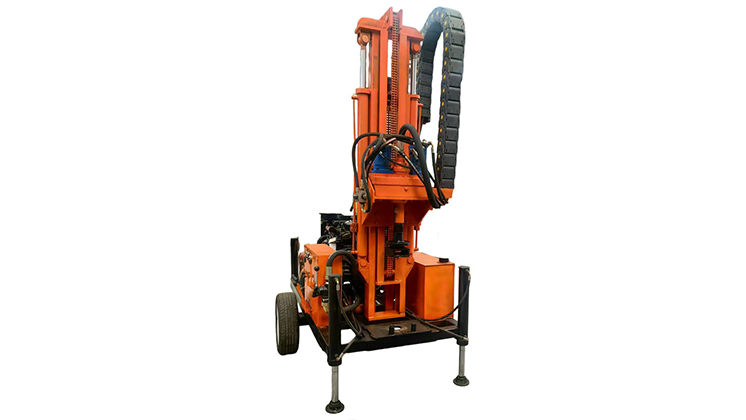

FY-260L Water Well Drilling Rig

The FY-260L water well drilling rig is a high-efficiency hydraulic drilling machine designed for water well drilling, geological drilling, and construction drilling. With strong torque, deep drilling capacity, and compact trailer design, this rig is ideal for both commercial and rural drilling projects.

The machine is easy to transport, easy to operate, and suitable for various soil and rock formations.

FY-260L

Versatile Power Options: Gasoline engine, 220V single-phase, or 380V three-phase power
Compact & Portable: Footprint <1 m², height controlled at ~2.6 m for easy outdoor and indoor use
Multi-Purpose Operation: Supports auger drilling, core sampling, and reverse water drilling
Efficient & Cost-Effective: Can drill 10–20 m per hour with low fuel consumption

High Efficiency
Durable
Precise
Flexible

Get a quote now

Details

Parameter Table

Application

Why Choose Our Drilling Rig

▪️ High drilling efficiency
Advanced hydraulic and mechanical systems ensure fast penetration and stable performance, reducing project time and increasing productivity.

▪️ Strong hydraulic power head
Provides high torque and consistent drilling power, capable of handling hard soil, rock layers, and deep drilling projects with ease.

▪️ Easy transportation and operation
Trailer-mounted or compact design allows quick relocation between job sites, while user-friendly controls simplify operation.

▪️ Durable structure and long service life
Built with robust materials and reinforced components to withstand harsh working conditions and heavy-duty usage.

▪️ Technical support and spare parts supply
Professional guidance, timely maintenance support, and readily available spare parts ensure uninterrupted operation.

▪️ OEM customization available
Flexible options to adapt the drilling rig to specific project requirements or special site conditions.

Technical Specifications

Parameter	Specification
Model	FY-260L
Torque	4000–5000 N·m
Rotational Speed	80–200 rpm
Maximum Drilling Depth	200 m
Maximum Drilling Diameter	325 mm
Lift Force	14 T
Recommended Drill Pipe Diameter	60 / 76 / 89 mm
Drill Pipe Length	2 m
Maximum Stroke	2.4 m
Slurry Pump	BW160
Engine Power	45 kW
Machine Size	2.3 × 1.2 × 1.7 m

Application Scenario

The FY-260L drilling rig is widely used for:

🔹 Water well drilling

🔹 Farm irrigation wells

🔹 Geological exploration drilling

🔹 Construction foundation drilling

🔹 Industrial water wells

🔹 Mining drilling

Explore more real-world drilling applications and project scenarios to find the right solution for your needs. ☛ View More
