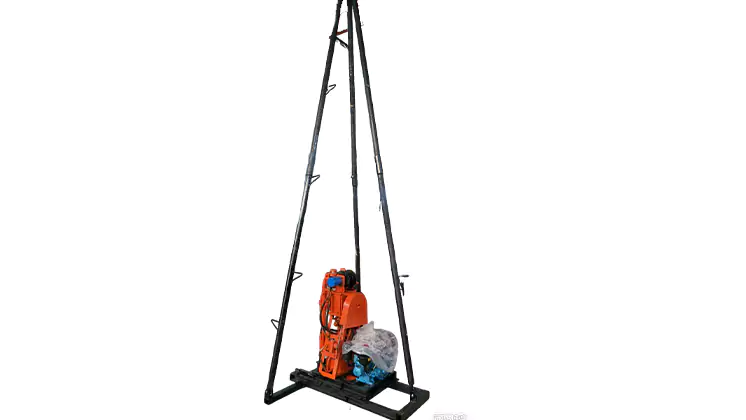

FY-50 Hydraulic Core Drilling Rig

The FY-50 hydraulic core drilling rig is a lightweight and versatile sampling rig, designed for plain areas, mountainous regions, and remote locations. It is ideal for railway, water conservancy, bridge, dam foundation geological surveys, core sampling, small grouting, and blasting holes. Its compact structure and easy mobility make it perfect for both field exploration and construction projects.

FY-50

Hydraulic Feed System: Increases drilling efficiency and reduces labor intensity
Continuous Rod Operation: Equipped with hexagonal drill rods for non-stop reversing, improving work efficiency
Hole Pressure Gauge: Monitor drilling conditions easily
Centralized Controls: Easy and safe operation
Portable & Compact Lightweight, easy to assemble and relocate, suitable for plain and mountainous terrain

High Efficiency
Durable
Precise
Flexible

Get a quote now

Parameter Table

Application

Technical Specifications

Model	FY-50
Drilling Depth	50 m
Drilling Diameter	75 – 108 mm
Drill Rod Size	42 × 550 mm
Vertical Axis Speed	70 – 650 rpm (1–3 Gear)
Reverse Gear Speed	50 – 130 rpm (R Gear)
Cylinder Stroke	1.1 m
Power Unit	R180 Diesel Engine (8 HP)
Machine Dimensions (L×W×H)	1180 × 680 × 1600 mm
Weight	200 kg (without engine)

Application Scenario

The FY-50 Hydraulic Core Drilling Rig is ideal for:

🔹 Geological sampling and core drilling in various terrains

🔹 Small-scale construction drilling for foundations and infrastructure

🔹 Soil and rock analysis for research and exploration projects

🔹 Drilling operations in mountainous and plain field locations

🔹 Environmental monitoring and site investigation projects

🔹 Efficient field drilling for engineering and survey teams

Explore more real-world drilling applications and project scenarios to find the right solution for your needs. ☛ View More
