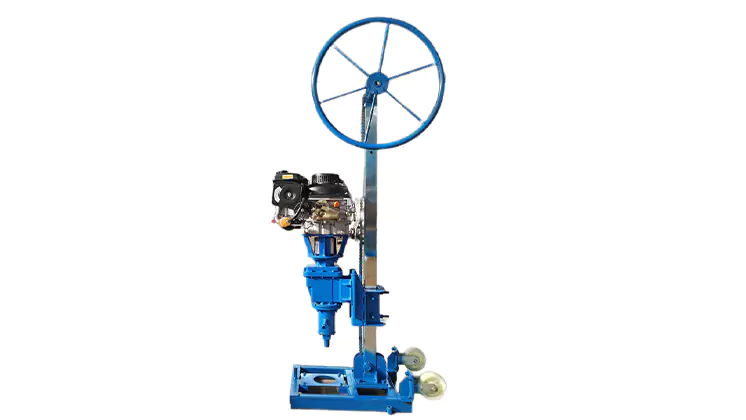

QZ-50C Portable Geological Drilling Rig

The QZ-50C drilling rig is a compact and versatile geological engineering rig, designed for soil sampling, standard penetration tests, and field exploration. Its lightweight design and easy disassembly make it perfect for remote or difficult-to-access sites, while the hoist with heavy hammer ensures efficient and safe operation.

QZ-50C

Portable & Compact: Lightweight and easy to transport for field surveys
Multi-Purpose Operation: Hoist can handle heavy hammer for soil extraction, probing,and standard penetration tests
Optional Power Options: Diesel engine or other power types can be specified for purchase
Safe & Efficient: Compact design, reasonable layout, easy assembly and disassembly for field operations

High Efficiency
Durable
Precise
Flexible

Get a quote now

Parameter Table

Application

Technical Specifications

Parameter	Specification
Drilling Diameter	46 – 110 mm
Drilling Depth	15 – 50 m
Drill Pipe Length	1000 mm
Drill Pipe Diameter	32 mm
Torque	180 N·m
Power Type	Diesel Engine
Overall Dimensions (L×W×H)	680 × 1050 × 1800 mm
Overall Weight	145 kg

Application Scenario

The QZ-50C Portable Geological Drilling Rig is ideal for:

🔹 Geological surveys and core sampling

🔹 Soil analysis and environmental monitoring

🔹 Exploration projects in mountains and plains

🔹 Small-scale construction and foundation investigation

🔹 Field research and academic geological studies

🔹 Lightweight, portable drilling operations in remote locations

Explore more real-world drilling applications and project scenarios to find the right solution for your needs. ☛ View More
